PRODUCT DESCRIPTION

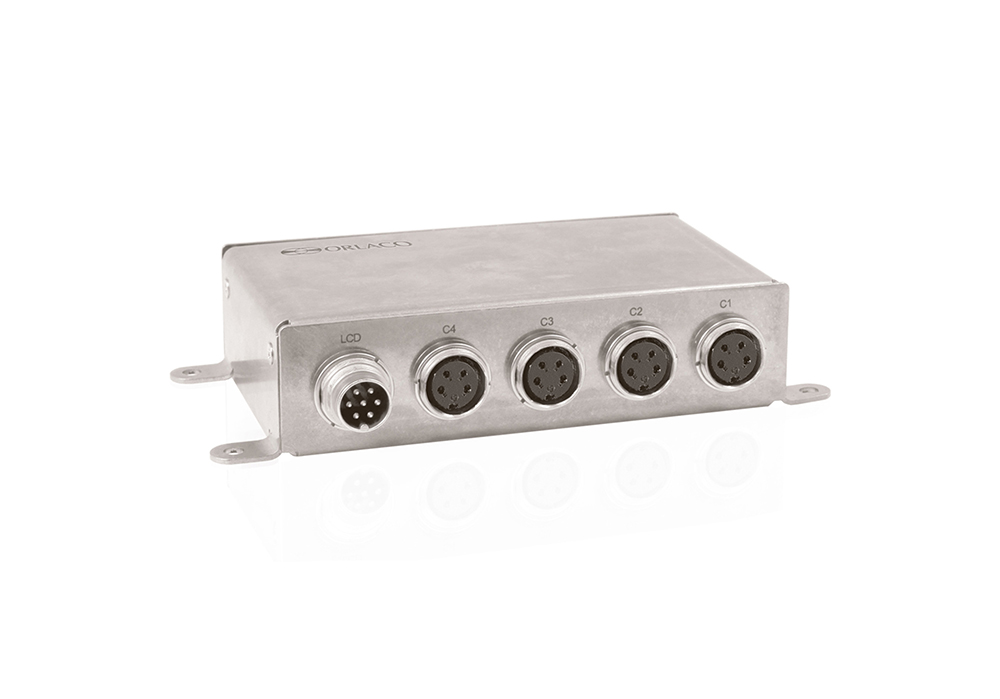

0405100 – Orlaco MultiView box has four camera inputs and also provides supply voltage through the monitor for up to four cameras. The built-in software enables all camera images to be displayed on a single Orlaco monitor in many different ways. This enables you to see everything you want to at a glance.

This Orlaco MultiView box enables up to four cameras to be connected to one Orlaco monitor.

The overall picture layout and the number of camera images that need displaying can be freely adjusted through a menu in the Orlaco monitor. In addition, you can program this layout into selectable video channels, which can then be automatically switched on when, for instance, you engage gears to go forward or backward, or use other commands. These channels can, of course, also be engaged manually or in sequence.

Please note: you will need an Orlaco Serial 7-pin monitor. It may be possible, if the MultiView box is pre-programmed, to connect it to an Orlaco 4-pin UNI monitor using an Orlaco adapter cable 7 pF > 4 pM (0304220).
