ES-SS Stainless Steel Emergency Stop (3-Pole)
Features & Details
• Operator cap colour: Red
• Operator construction/material: Stainless Steel 316 or Plastic
• Safety Contact: IEC 60947-5-1 Double break Type Zb
• Contact Material: Silver
• Rating: Utilisation Category AC15
• Operator Type: Push Unit
• Electric connection: Screw connection
• Operating temperature: -25ºC to 80ºC
• Vibration: 10 G maximum
• Certification: IEC 60947-5-5 UL508 EN ISO 13850
• Allplant Part: AP13-4390
• Idem: 231001
Specifications:
• Environmentally sealed body
• Shock resistance
$395.00 Inc. GST
PRODUCT DESCRIPTION

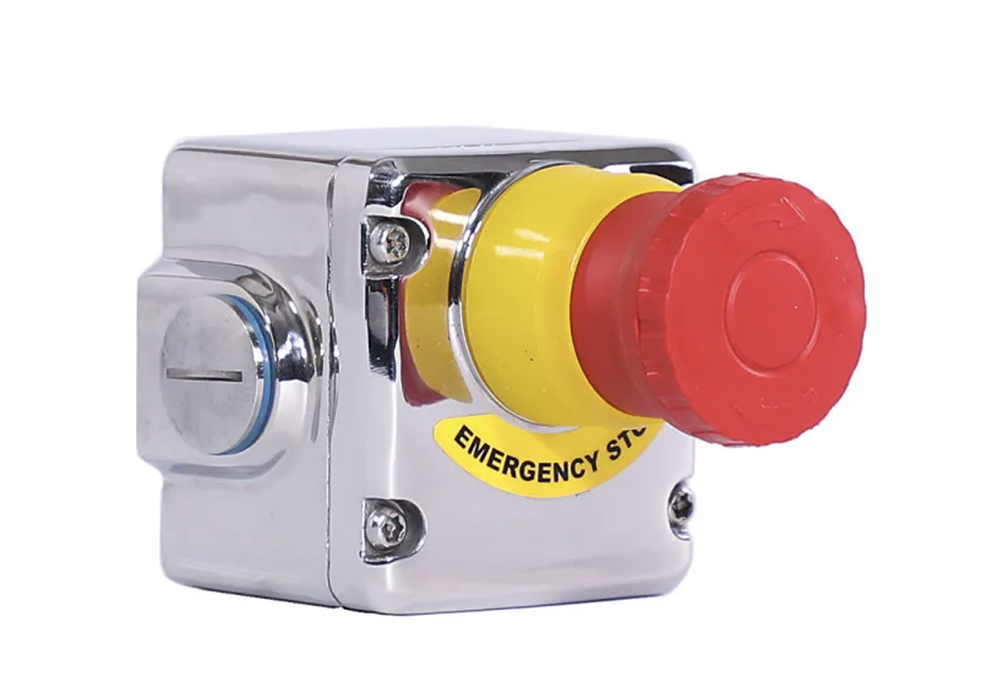

Emergency Stop Device 3-Pole Contacts in Stainless Steel (ES-SS).
Allplant Auto Electrics’ Heavy Duty Emergency Stop Switches are designed to provide robust Emergency Stop protection for exposed conveyors or machinery. The IP69K enclosure protection is maintained by a double seal gasket and anti-rust, stainless steel internal screws.
- Body Material: Mirror Polished 316 Grade Stainless Steel Ingress
- Contacts: 3 Pole Positively Operated Contact Blocks
- Ingress Protection: IP69K
- Certification: IEC 60947-5-5 UL508 EN ISO 13850
Designed with a special lid safety trip mechanism means the safety contacts automatically open if the lid is removed from the Emergency Stop Switch, providing an additional layer of protection.”
Contact Allplant Auto Electric to find out more about Allplant’s Emergency Stop product.
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 12 × 12 × 10 cm |
