NITRO 140 MAXX

Features & Details

• Wattage 140 Watt

• Light source 19 x Osram LEDs

• Light output (raw) 29,220 lumens

•Light output (effect) 23,230 lumens

• Voltage 9V-36V

• Current draw 9.6A @ 13.5V

• Operating temperature -40 to +85C

• IP IP68

• Connector type plugs 2 pin heavy duty Deutsch

• Housing Die-Cast Alloy

• Outer lens construction Polycarbonate

• Brackets 4mm stainless

• Colour Temperature 4000K or 5700K

• Lifespan 50,000 Hours

• Diameter 230mm

• Net Weight 2.95kg

• Mounting Suitable All types

• Beams type Combo and Widr® Beam

• Warranty 5 years

Hardness and anti-thefs nuts included Yes







PRODUCT DESCRIPTION

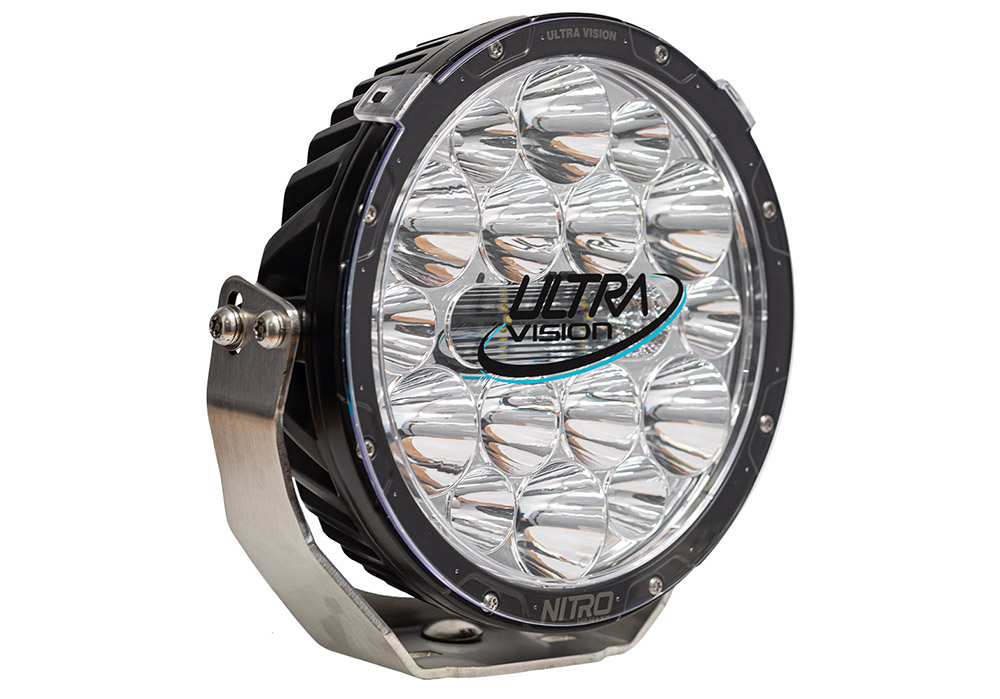

NITRO 140 MAXX LED Driving Light. Numerous factors combine together to make a good driving light.  Needless to say, to make an exceptional driving light, all these factors have to be… exceptional.  The Nitro 140 Maxx has done just this!

The body has been designed to reduce depth and weight, so as to increase fitment options.  The lenses are made from hardened polycarbonate and the bracket from 4mm stainless steel.  However, from the drivers’ perspective, the real science is the combination of the LED’s and the optics.

The sophisticated Contrl® optics condense the light by reducing non-functional stray beams.  Coupled with a high-efficiency Luxeon LED they produce a performance that is unmatched internationally.

Combination and Widr® beam patterns are available delivering up to 1 Lux at 1.2km.



4000k vs 5700k Colour Temperature

Nitro LED vs. Competitor LED lights



THE NITRO 140 MAXX driving lights are engineered & made in Australia and come with a 5 Year Warranty



ADDITIONAL INFORMATION

BEAM – WiDr Beam, Combo Beam

COLOUR TEMPERATURE – 4000k, 5700k

RIM COLOUR – Black, Chrome, Rim Colour Match, 24ct Gold Plated Rim



PART NUMBERS

• Widr, 5700K, Black Rim – PVM2314LEDW

• Widr, 4000K, Black Rim – PVM2314LEDW4

• Widr, 5700K, Chrome Rim – PVM2314LEDW-C

• Widr, 4000K, Chrome Rim – PVM2314LEDW4-C

• Combo, 5700K, Black Rim – PVM2314LEDC

• Combo, 4000K, Black Rim – PVM2314LEDC4

• Combo, 5700K, Chrome Rim – PVM2314LEDC-C

• Combo, 4000K, Chrome Rim – PVM2314LEDC4-C
